TESLA 4000 Portable Power System Recorder (Model 4000)

pic_TESLA_Portable_collage
pic_TESLA_Portable_collage
pic_SPRO_4000_sub_harmonic_protection_relay_w_bg
pic_SPRO_4000_sub_harmonic_protection_relay_w_bg
TESLA_4000_with_diagram
TESLA_4000_with_diagram

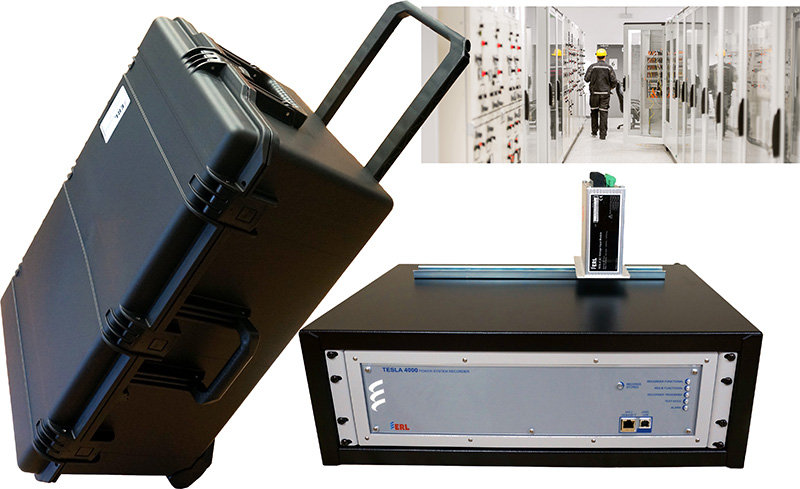

The TESLA Portable 4000 is a multi-time frame power system monitoring recorder within a portable metal enclosure. Featuring a robust 19″ 3U rack-mount enclosure, TESLA Portable is suitable for temporary installation or short-term monitoring applications. Available in 2 models, customers may choose between “36 analog/64 digital inputs/8 digital outputs” or “18 analog/32 digital inputs/4 digital outputs”. TESLA Portable can accommodate current modules, voltage modules, dc isolation modules or split core CTs, which can mount up to 1200 meters from the recorder chassis. Lightweight and robust, TESLA Portable wheels easily, includes shock absorbant padding and meets airline carry on regulations.Learn more about TESLA 4000 Power System Recorder (non-portable version) for more information.ApplicationsSuitable for temporary installation or short-term monitoring applicationsComplete integrated insight of power system healthPerformance monitoring of substation IEDs and equipmentFeatures and benefitsRobust 19″ 3U rack-mount enclosureAvailable in 2 models:36 analog/64 digital inputs/8 digital outputs18 analog/32 digital inputs/4 digital outputsEasy-to-use setting and analysis softwareRemote analog and input modulesLightweight, robust equipment caseMeets airline carry on regulationsWheels and handle for easy travelPre-cut spaces for up to 18 split core CTs and up to 4 modules (voltage, current or DC modules)Optional failover redundancySCADA support with enhanced DNP3 and ModbusCDR meets NERC PRC-002 DME standardsRemote input modules save on costly wiring runsState-of-the-art communications (2 rear ports, 100BASE-TX RJ-45 or 100BASE-FX 1300 nm multimode optical with ST style connector to accommodate the industry’s latest network-based communications)Ethernet ports with 2 unique MAC addresses that easily accommodate network access security needs

The TESLA Portable 4000 is a multi-time frame power system monitoring recorder within a portable metal enclosure. Featuring a robust 19″ 3U rack-mount enclosure, TESLA Portable is suitable for temporary installation or short-term monitoring applications. Available in 2 models, customers may choose between “36 analog/64 digital inputs/8 digital outputs” or “18 analog/32 digital inputs/4 digital outputs”. TESLA Portable can accommodate current modules, voltage modules, dc isolation modules or split core CTs, which can mount up to 1200 meters from the recorder chassis. Lightweight and robust, TESLA Portable wheels easily, includes shock absorbant padding and meets airline carry on regulations.

Learn more about TESLA 4000 Power System Recorder (non-portable version) for more information.

Applications

  • Suitable for temporary installation or short-term monitoring applications
  • Complete integrated insight of power system health
  • Performance monitoring of substation IEDs and equipment

Features and benefits

  • Robust 19″ 3U rack-mount enclosure
  • Available in 2 models:
    • 36 analog/64 digital inputs/8 digital outputs
    • 18 analog/32 digital inputs/4 digital outputs
  • Easy-to-use setting and analysis software
  • Remote analog and input modules
  • Lightweight, robust equipment case
  • Meets airline carry on regulations
  • Wheels and handle for easy travel
  • Pre-cut spaces for up to 18 split core CTs and up to 4 modules (voltage, current or DC modules)
  • Optional failover redundancy
  • SCADA support with enhanced DNP3 and Modbus
  • CDR meets NERC PRC-002 DME standards
  • Remote input modules save on costly wiring runs
  • State-of-the-art communications (2 rear ports, 100BASE-TX RJ-45 or 100BASE-FX 1300 nm multimode optical with ST style connector to accommodate the industry’s latest network-based communications)
  • Ethernet ports with 2 unique MAC addresses that easily accommodate network access security needs

TESLA Portable 4000 是一款多时间帧电力系统监控记录仪，采用便携式金属外壳。 TESLA Portable 采用坚固的 19 英寸 3U 机架式外壳，适用于临时安装或短期监测应用。提供两种型号，客户可选择“36 路模拟输入/64 路数字输入/8 路数字输出”或“18 路模拟输入/32 路数字输入/4 路数字输出”。TESLA Portable 可容纳电流模块、电压模块、直流隔离模块或分体式电流互感器 (CT)，这些模块的安装距离最远可达距离记录仪机箱 1200 米。TESLA Portable 轻巧坚固，配备易于移动的滚轮，并带有减震衬垫，符合航空公司随身携带行李的规定。

了解更多关于 TESLA 4000 电力系统记录仪（非便携式版本）的信息。

应用

适用于临时安装或短期监测应用

全面了解电力系统健康状况

监测变电站 IED 和设备的性能

特性和优势

坚固的 19 英寸 3U 机架式外壳

提供两种型号型号：

36路模拟输入/64路数字输入/8路数字输出

18路模拟输入/32路数字输入/4路数字输出

易于使用的设置和分析软件

远程模拟和输入模块

轻巧坚固的设备箱

符合航空公司随身携带行李规定

配备滚轮和把手，方便移动

预留空间，最多可安装18个分体式电流互感器和4个模块（电压、电流或直流模块）

可选故障转移冗余

支持SCADA系统，增强了DNP3和Modbus协议

CDR符合NERC PRC-002 DME标准

远程输入模块可节省昂贵的布线成本

先进的通信技术（2个后置端口，100BASE-TX RJ-45或100BASE-FX 1300nm多模光纤，采用ST型连接器，可兼容业界最新的网络通信技术）

以太网端口配备2个独立的MAC地址，轻松满足网络访问安全需求
